Renesas Electronics has unveiled the RAA489400, a cutting-edge USB Type-C® Port Controller tailored for applications demanding high power, precision, and advanced connectivity. This compact yet powerful controller is built to comply with USB Type-C Release 2.1 and USB Power Delivery Revision 3.1, including Extended Power Range (EPR) capabilities that deliver up to 240W at 48V. It is designed to address the growing needs of modern devices requiring seamless power delivery and efficient operation.

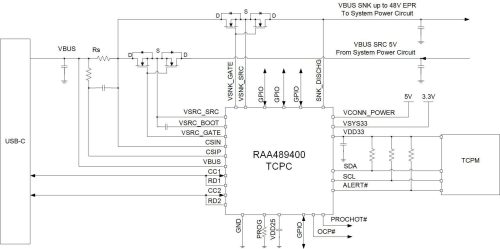

At its core, the RAA489400 integrates a highly efficient power management system. It supports both VBUS source and sink operations with bidirectional gate drivers for external N-channel MOSFETs, ensuring smooth and reliable power transitions. Its comprehensive protection features include overvoltage, Undervoltage, and reverse voltage safeguards for both VBUS and VCONN, as well as overcurrent protection with configurable thresholds. These mechanisms enhance the safety and reliability of devices operating under demanding conditions.

Renesas RAA489400: Versatile USB Type-C Controller Empowering High-Power Devices-Chargerlab

The RAA489400 also boasts remarkable versatility through its integration of SMBus/I2C interfaces. These enable seamless communication with external Type-C Port Managers (TCPMs), allowing advanced configurations and control for multiple Type-C ports in complex systems. Additionally, its support for dual-role power (DRP) makes it an ideal choice for dynamic applications like notebooks, drones, and power banks, where devices must alternate between power sourcing and sinking roles.

Renesas’s advanced engineering shines through the RAA489400’s innovative features. The controller supports fast role swap (FRS) for instantaneous transitions between power roles and includes internal VBUS discharge paths for added safety. Its integrated ADC allows precise monitoring of VBUS voltage and current, enabling real-time power optimization. Furthermore, its compact 32-pin 3x5mm FCQFN package ensures space efficiency for integration into modern, space-constrained designs.

Renesas RAA489400: Versatile USB Type-C Controller Empowering High-Power Devices-Chargerlab
  • High Voltage Tolerance: The RAA489400 supports an absolute maximum rating of 60V for VBUS monitoring and Configuration Channels (CC1/CC2). This makes it ideal for devices operating in high-power environments.
  • Enhanced Power Management: Equipped with VBUS source and sink path gate drivers, the device enables efficient bidirectional power flow. It includes integrated overvoltage, undervoltage, and reverse voltage protections for both VBUS and VCONN paths.
  • Flexible Interfaces: With an integrated SMBus/I2C interface, the controller can seamlessly communicate with external Type-C Port Managers (TCPM), allowing for advanced control over multiple ports.
  • Dynamic Role Switching: Supporting dual-role power (DRP) systems, the RAA489400 can function as both a power source and sink, enabling applications like notebooks, drones, and power banks to dynamically adapt to different scenarios.
  • Compact Design: Packaged in a 32-pin 3x5mm FCQFN, the RAA489400 is optimized for space-constrained designs, ensuring easy integration into various form factors.
  • High-power battery systems like electric bikes and power tools.
  • Consumer electronics, including notebooks, tablets, and power banks.
  • Industrial and home appliances require reliable USB-C connectivity.

With its extensive feature set, compact design, and adherence to the latest USB standards, the RAA489400 is poised to become a cornerstone in next-generation USB Type-C systems. It ensures not only compatibility with cutting-edge power demands but also the flexibility and reliability required for diverse modern applications.
